Maxilift 400-500 Series

400 - 400 L Series
500 - 500 L Series

Standard outreach: from 11’11” to 18’10”
360° double rack and pinion slewing rotation
4 functions valve (one free)
Slewing torque ft lb 11,800

Including

  • Counterflange

Options:

  • 990 kg high speed winch
  • 30 lt oil tank kit

FULL CAPACITY

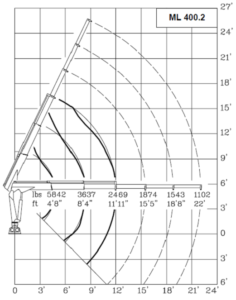

400.2

Crane rating: ft lb 30,980
Standard outreach: ft 11′ 11″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,015

400.3

Crane rating: ft lb 30,980
Standard outreach: ft 15′ 5″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,100

400L.2

Crane rating: ft lb 30,980
Standard outreach: ft 14′ 5″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,080

400L.3

Crane rating: ft lb 30,980
Standard outreach: ft 18′ 10″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,190

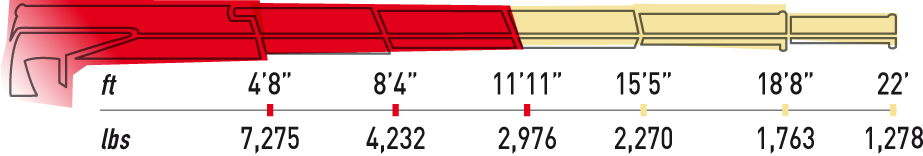

500.2

Crane rating: ft lb 35,400
Standard outreach: ft 11′ 11″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,350

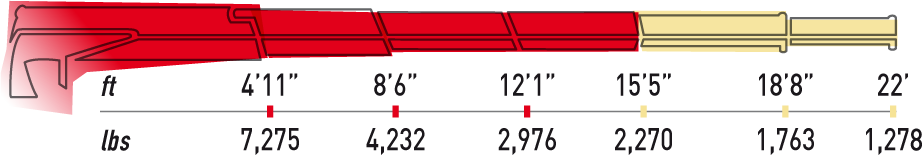

500.3

Crane rating: ft lb 35,400
Standard outreach: ft 15′ 5″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,125

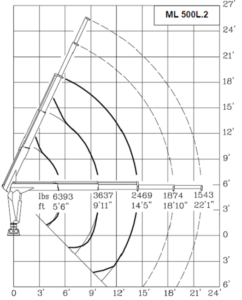

500L.2

Crane rating: ft lb 35,400
Standard outreach: ft 14′ 5″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,100

500L.3

Crane rating: ft lb 35,400
Standard outreach: ft 18′ 10″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,210

OPTIONALS

Winch

Colour

Personalized colour on request (standard colour red RAL 3020)

Oil tank

Manual extensions
