Maxilift 230 Series

230 SERIES

Standard outreach: from 10’6″ to 13’9″
360° slewing rotation with worm screw
4 functions valve bank



Including

  • 15 lt. oil tank for H (P.T.O. – Power Take Off) version
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options

  • Crane base with 1 hydraulic and 1 mechanical stabilizers (fix or tilting)
  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • 3 – 4 functions proportional remote control (by cable or radio)
  • 500 kg hydraulic winch (for H versions only) New system with less cumbersome snatch block and quick disconnecting stop end system

FULL CAPACITY

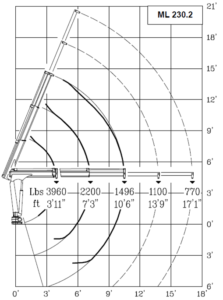

230.2

Crane rating: ft lb 16.300
Standard outreach: ft 10′ 6″
Standard hydraulic extensions: n° 2

Maximum angle slope: °5

Suggested oil flow: gpm 2.1÷2.6

Max. working pressure: p.s.i. 2900
Basic crane weight “ers” 12v/24v: lb 540
Basic crane weight “h”: lb 495

Base weight with extendable stabilizers: lb 225÷240
Beam weight with 2 extendable stabilizers: lb 150÷180

230.3

Crane rating: ft lb 16.300
Standard outreach: ft 13′ 9″
Standard hydraulic extensions: n° 3

Maximum angle slope: °5

Suggested oil flow: gpm 2.1÷2.6

Max. working pressure: p.s.i. 2900
Basic crane weight “ers” 12v/24v: lb 605
Basic crane weight “h”: lb 560

Base weight with extendable stabilizers: lb 225÷240
Beam weight with 2 extendable stabilizers: lb 150÷180

OPTIONALS

Slewing angle limitation

Winch

Cable remote control

Radio remote control

Additional function

Marinization

Colour

Personalized colour on request (standard colour red RAL 3020)

Micro-switch for extension

Micro-switch kit signalling not locked side extension.

Main beam 2H

Main beam 1H

Main beam 1H+1M

Main beam 1M

Titling stabilisers

Mechanical stabiliser

Tilting kit

Side handle leg

Manual extensions

Fixed installation

Conversion and upgrade
