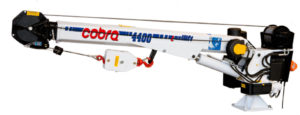

Cobra 4400 Series

4400 - 4400 L
16,000 ft lb (22 kNm)

Main Features

  • Amazing crane rating / weight ratio
  • Swedish high tensile steel
  • Hexagonal boom design single weld
  • 400° slewing rotation
  • Big size pins nitrated
  • Planetary gear winch with high resistance non twisting cable
  • Patented pull line limiter system
  • Excellent winch single line break strength to better absorb shock load
  • Programmable load limiting device
  • Digital proportional remote control unit (2,4 GHz with single hand or with belly-box paddle type transmitter
  • Mechanical A2B system
  • A2B counterweight storage new design unit with standard auto-release feature
  • Installation kit included

Power

  • E 12/24 V: Electro-hydraulic, including heavy duty DC power-pack
  • H: P.T.O. driven

Telescopic boom system
One stage hydraulic and one manual or two fully hydraulic stages

GENERAL CATALOG
TECHNICAL SHEETS 4400
TECHNICAL SHEETS 4400.L
AVAILABLE IN STOCK
MANUALS

HYDRAULIC CRANES

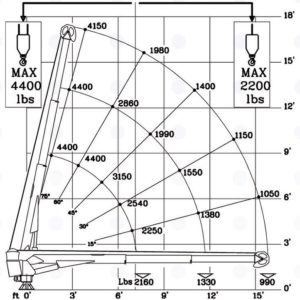

4400.1 H

Details

Crane rating: ft lb 16,000
One hydraulic extension and one manual extension
Hydraulic extension: ft 11′ 6″
Horizontal extension (from center of rotation): ft 15′ 9″
Slewing rotation: 400°
Rope diameter (non twisting type): in 5/16″
Rope lenght: ft 72′
Crane weight: lb 750

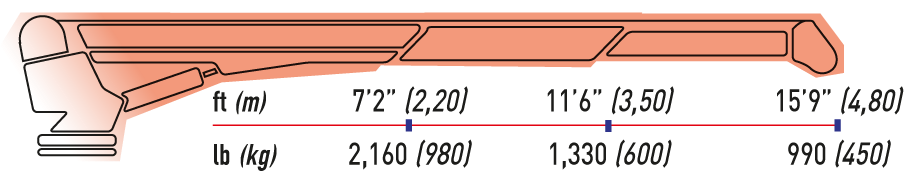

4400.2 H

Details

Crane rating: ft lb 16,000
One hydraulic extension and one manual extension
Hydraulic extension: ft 11′ 6″
Horizontal extension (from center of rotation): ft 15′ 9″
Slewing rotation: 400°
Rope diameter (non twisting type): in 5/16″
Rope lenght: ft 72′
Crane weight: lb 780

ELECTRO-HYDRAULIC CRANES

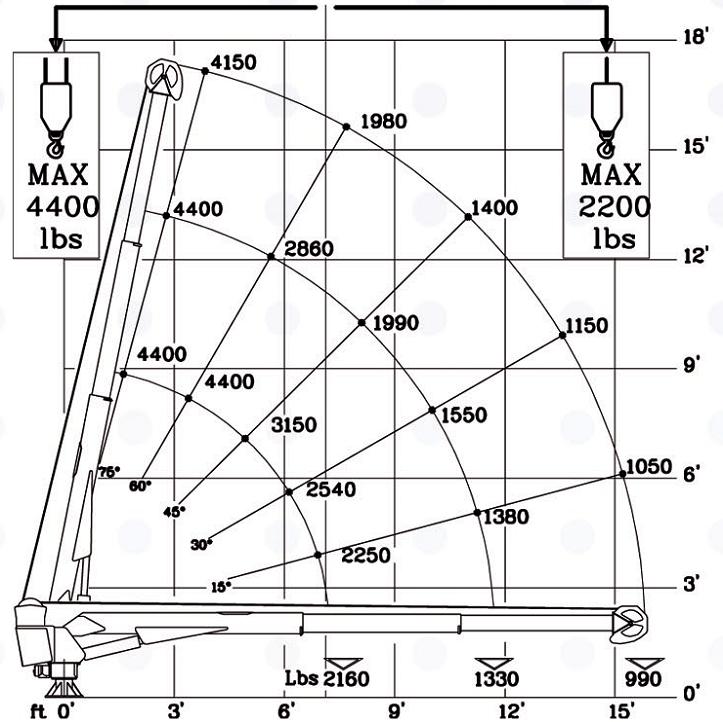

4400.1 E

Details

Crane rating: ft lb 16,000
One hydraulic extension and one manual extension
Hydraulic extension: ft 11′ 6″
Horizontal extension (from center of rotation): ft 15′ 9″
Slewing rotation: 400°
Rope diameter (non twisting type): in 5/16″
Rope lenght: ft 72′
Crane weight: lb 790

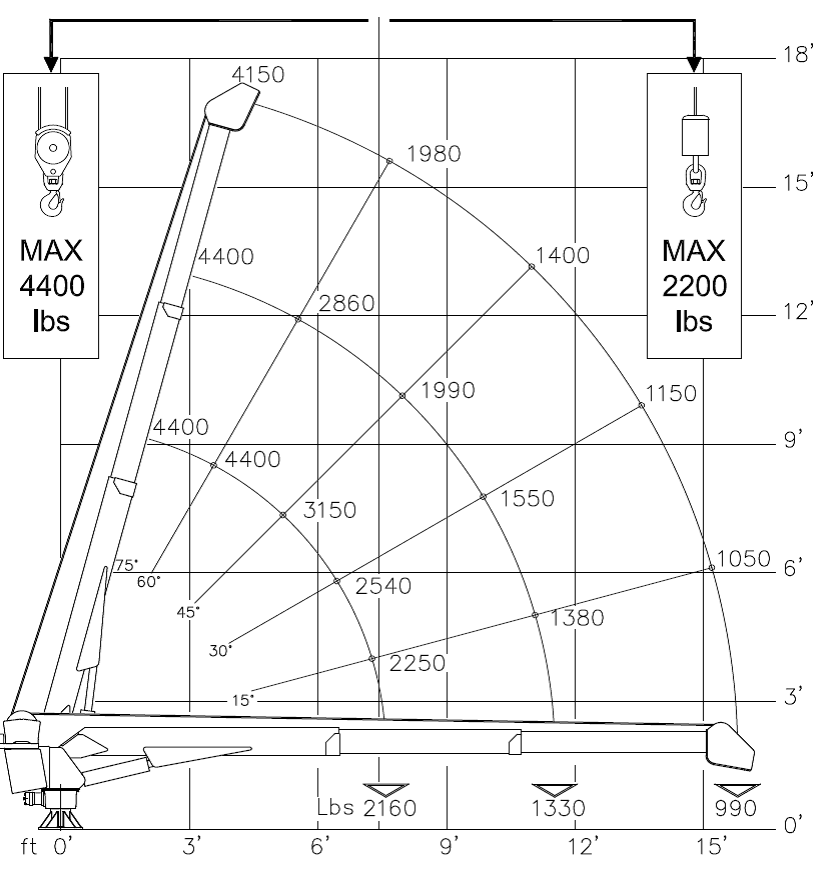

4400.2 E

Details

Crane rating: ft lb 16,000
One hydraulic extension and one manual extension
Hydraulic extension: ft 11′ 6″
Horizontal extension (from center of rotation): ft 15′ 9″
Slewing rotation: 400°
Rope diameter (non twisting type): in 5/16″
Rope lenght: ft 72′
Crane weight: lb 825

OPTIONALS

Oil tank

4 gallons reservoir oil, with filter on return line (only for PTO driven versions)

Hook

Safety latch with spring for swivel hook

Cable pressure rollers

Cable pressure rollers, spring loaded on winch drum

Receiver for auxiliary functions

Receiver for auxiliary functions (engine, compressor start/stop, truck engine accelerator)

Remote control wire

33 ft  remote control serial cable, where or when radio operation is not permitted (RS version only)

Counterweight

Counterweight for single line lifting

SCU

SCU – stability control kit for 1 extendable outriggers set  (4 sensors) including aux receiver

Workshop cable

Workshop cable for auxiliary receiver matching (to be always purchased along with 1st SCU)

OUTRIGGERS

2.3 F-EMO M

2.3 F-EMO M – One side manual out, both legs manual up/down

2.3 F-EMO K

2.3 F-EMO K – One side manual out, both legs manual up/down

2.3 F-EMO M (metric version)

2.3 F-EMO M – One side manual out, both legs manual up/down

2.3 F-EMO K (metric version)

2.3 F-EMO K – One side manual out, both legs manual up/down
