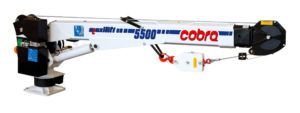

Cobra 5500 Series

5500
25,000 ft lb (34 kNm)

Main Features

  • Amazing crane rating / weight ratio
  • Swedish high tensile steel
  • Hexagonal boom design single weld
  • Continuous (non stop) slewing
  • Big size pins nitrated
  • Planetary gear winch with non twisting cable
  • Patented pull line limiter system
  • Excellent winch single line break strength to better absorb shock load
  • Programmable load limiting device
  • Digital proportionl remote control unit (2,4 GHz) with single hand or with belly-box paddle type transmitter
  • Mechanical A2B system
  • A2B counterweight storage new design unit with standard auto-release feature
  • Installation kit included Power

Power

  • E 12/24 V: Electro-hydraulic, including heavy duty DC power-pack
  • H: P.T.O. driven

Telescopic boom system
Two fully hydraulic stages

GENERAL CATALOG
TECHNICAL SHEETS
AVAILABLE IN STOCK
MANUALS

HYDRAULIC CRANES

ELECTRO-HYDRAULIC CRANES

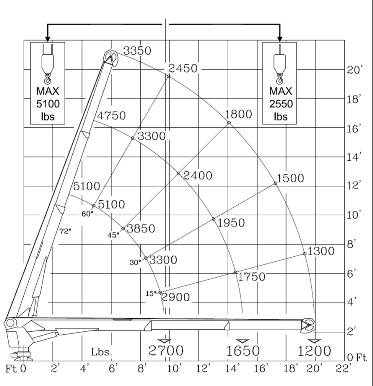

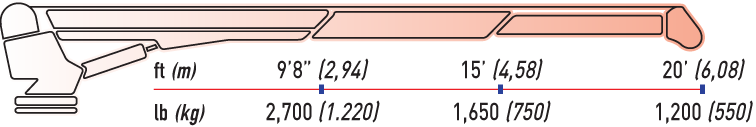

5500.H

Details

Crane rating: ft lb 25,000
Two telescopic extensions with fully hydraulic stages
Hydraulic extension: ft 20′
Horizontal extension (from center of rotation): ft 20′
Slewing rotation: Continuous (non stop)
Rope diameter (non twisting type): in 5/16″
Rope lenght: ft 98′
Crane weight: lb 1,080

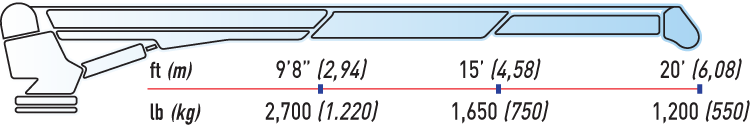

5500.E

Details

Crane rating: ft lb 25,000
Two telescopic extensions with fully hydraulic stages
Hydraulic extension: ft 20′
Horizontal extension (from center of rotation): ft 20′
Slewing rotation: Continuous (non stop)
Rope diameter (non twisting type): in 5/16″
Rope lenght: ft 98′
Crane weight: lb 1,060

OPTIONALS

Oil tank

8 gallons reservoir oil, with filter on return line (only PTO driven)

Safety latch

Safety latch with spring for swivel hook

Cable pressure rollers

Cable pressure rollers, spring loaded on winch drum

Receiver for auxiliary functions

Receiver for auxiliary functions (engine, compressor star/stop, truck engine accelerator)

Remote control wire

33 ft remote control seria cable  where or when radio operation is not permitted

Counterweight

Counterweight for single line lifting

SCU

SCU – stability control kit for 1 extendable outriggers set  (4 sensors) including aux receiver

OUTRIGGERS

6 F-ELMO K

6 F-ELMO K – One side manual out, both legs manual up/down

6 F-ELHO K

6 F-ELHO K – One side hydraulic out, both legs manual up/down

6 F-ELMO K (metric version)

6 F-ELMO K – One side manual out, both legs manual up/down

6 F-ELHO K (metric version)

6 F-ELHO K – One side hydraulic out, both legs hydraulic up/down
