Maxilift 380 Series

380 SERIES

Standard outreach: from 12′ to 19′
360° slewing rotation with worm screw
4 functions valve bank



Including

  • 15 lt. oil tank for H (P.T.O. – Power Take Off) version
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options

  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • Additional beam with hydraulic stabilizers
  • 3 – 4 functions proportional remote control (by cable or radio)
  • 990 kg hydraulic winch (for H versions only) New system with less cumbersome snatch block and quick disconnecting stop end system

FULL CAPACITY

380.2

Crane rating: ft lb 27.300
Standard outreach: ft 12′
Standard hydraulic extensions: n° 2

Maximum angle slope: °5

Suggested oil flow: gpm 3.2÷4

Max. working pressure: p.s.i. 3190
Basic crane weight e24v: lb 725
Basic crane weight “h”: lb 685

Base weight with extendable stabilizers: lb 348÷352

380.3

Crane rating: ft lb 27.300
Standard outreach: ft 15′ 6″
Standard hydraulic extensions: n° 3

Maximum angle slope: °5

Suggested oil flow: gpm 3.2÷4

Max. working pressure: p.s.i. 3190
Basic crane weight e24v: lb 805
Basic crane weight “h”: lb 760

Base weight with extendable stabilizers: lb 152÷183

380.4

Crane rating: ft lb 27.300
Standard outreach: ft 19′
Standard hydraulic extensions: n° 4

Maximum angle slope: °5

Suggested oil flow: gpm 3.2÷4

Max. working pressure: p.s.i. 3190
Basic crane weight e24v: lb –
Basic crane weight “h”: lb 825

Base weight with extendable stabilizers: lb 152÷183

OPTIONALS

Slewing angle limitation

Winch

Cable remote control

Radio remote control

Additional function

Marinization

Colour

Personalized colour on request (standard colour red RAL 3020)

Micro-switch for extension

Micro-switch kit signalling not locked side extension.

Titling stabilisers

Manual extensions

Fixed installation

Conversion and upgrade

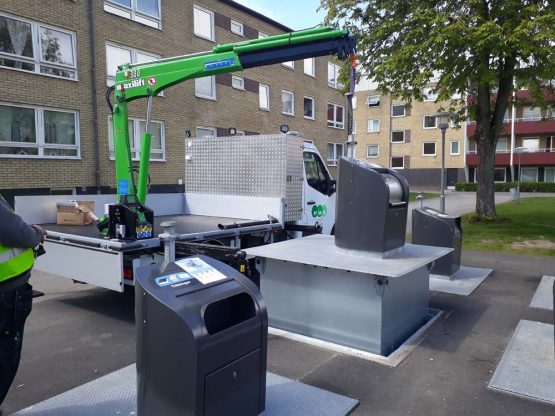

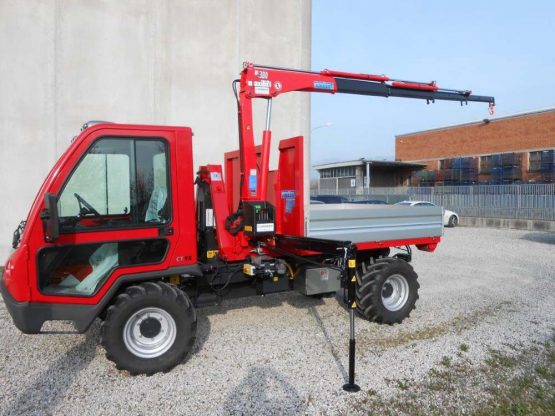

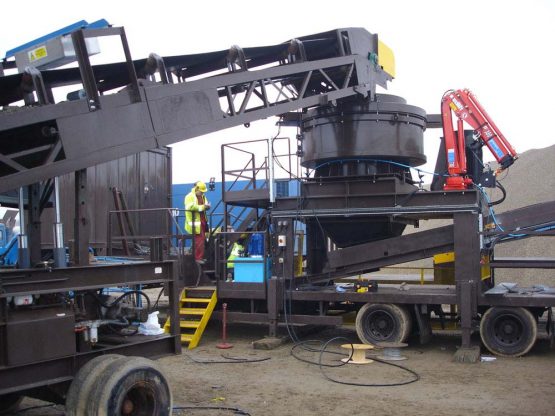

APPLICATIONS
