Maxilift 110 Series

110 SERIES

Standard outreach: from 9’2″ to 12’3″ m
330° slewing rotation with worm screw
3 functions valve bank (4th function available on request)



Including

  • 15 lt. oil tank for H (P.T.O. – Power Take Off) version
  • Motor pump kit with 5 lt. oil tank for electro-hydraulic versions ERS 12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options

  • Quick fastening kit with mechanical stabilizer
  • Crane base with hydraulic or mechanical stabilizers (fix or tilting)
  • 3 functions proportional remote control (by cable or radio)
  • 300 kg electro-hydraulic winch (for 1 and 2 extensions versions only) – New system with less cumbersome snatch block and quick disconnecting stop end system

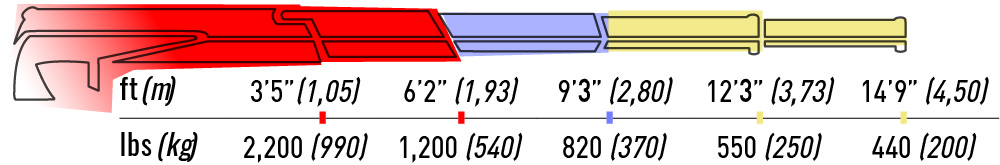

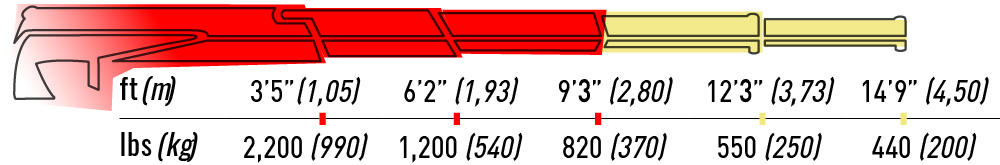

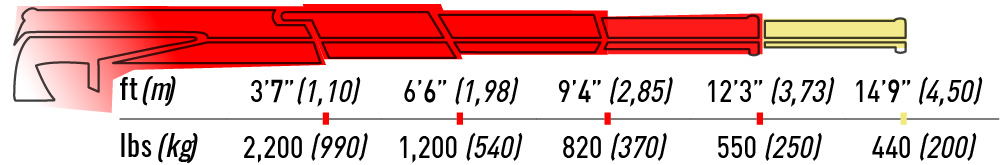

FULL CAPACITY

110.1

Crane rating: ft lb 7,300
Standard outreach: ft 9′ 2″
Nr. of extensions (h=hydraulic – m=manual): 1 H + 1 M

Maximum angle slope: °5

Suggested oil flow: gpm 1÷1.6

Max. working pressure: p.s.i. 2,900
Basic crane weight “ers” 12v/24v: lb 275
Basic crane weight “h”: lb 230

Quick fitting crane base weight with 1 mechanical jack: lb 90

Sliding crane base weight with extendable stabilizers: lb 140÷195
Beam weight with 2 extendable stabilizers: lb 130÷135

110.2

Crane rating: ft lb 7,300
Standard outreach: ft 9′ 2″
Nr. of extensions (h=hydraulic – m=manual): 2 H

Maximum angle slope: °5

Suggested oil flow: gpm 1÷1.6

Max. working pressure: p.s.i. 2,900
Basic crane weight “ers” 12v/24v: lb 320
Basic crane weight “h”: lb 275

Quick fitting crane base weight with 1 mechanical jack: lb 90

Sliding crane base weight with extendable stabilizers: lb 140÷195
Beam weight with 2 extendable stabilizers: lb 130÷135

110.3

Crane rating: ft lb 7,300
Standard outreach: ft 12′ 3″
Nr. of extensions (h=hydraulic – m=manual): 3 H

Maximum angle slope: °5

Suggested oil flow: gpm 1÷1.6

Max. working pressure: p.s.i. 2,900
Basic crane weight “ers” 12v/24v: lb 385
Basic crane weight “h”: lb 340

Quick fitting crane base weight with 1 mechanical jack: lb 90

Sliding crane base weight with extendable stabilizers: lb 140÷195
Beam weight with 2 extendable stabilizers: lb 130÷135

OPTIONALS

Slewing angle limitation

Winch

Cable remote control

Radio remote control

Additional function

Colour

Personalized colour on request (standard colour red RAL 3020)

Micro-switch for extension

Micro-switch kit signalling not locked side extension.

Counter flange

Crane base H

Crane base M

Quick fastening system

Kit stabilizer leg for quick fastening system

Kit stabilizer leg with flange

Main beam H

Main beam M

Titling stabilisers

Mechanical stabiliser

Tilting kit

Side handle leg

Manual extensions

Fixed installation

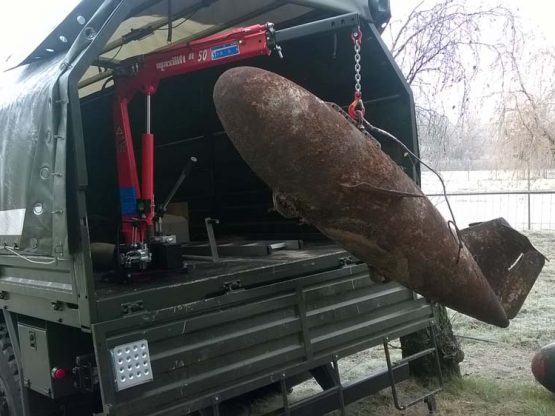

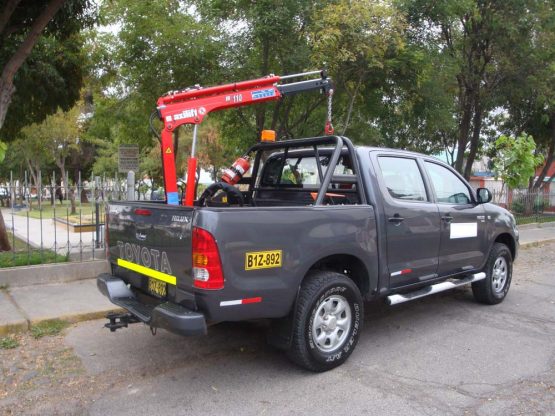

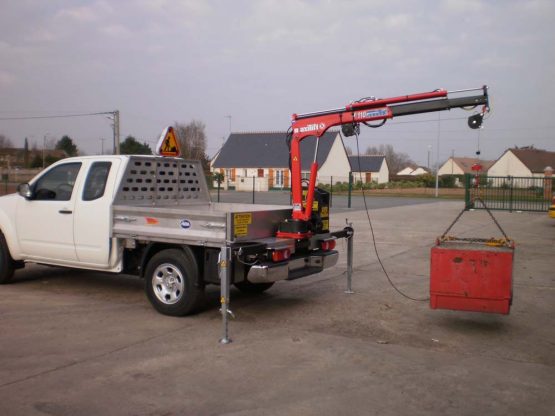

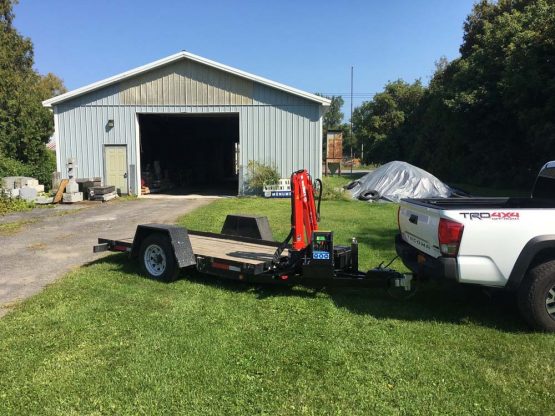

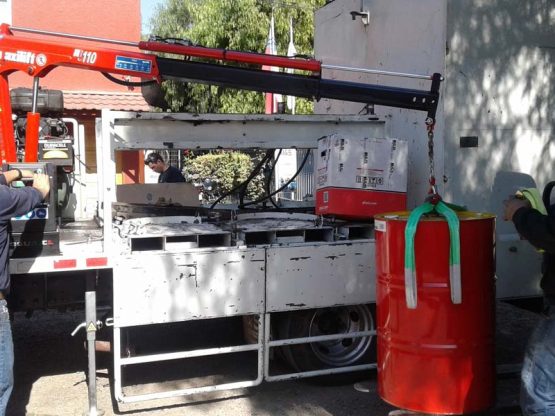

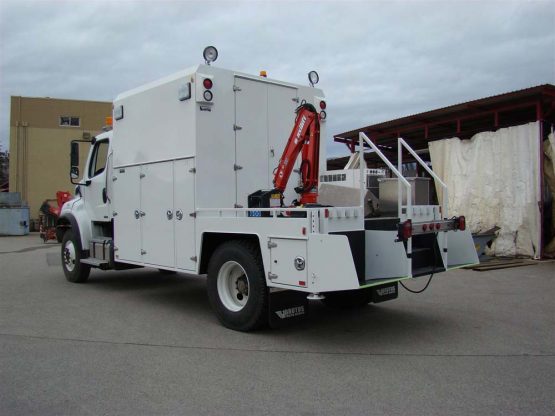

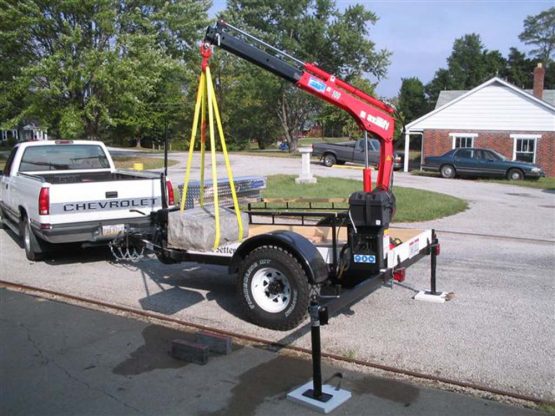

APPLICATIONS
