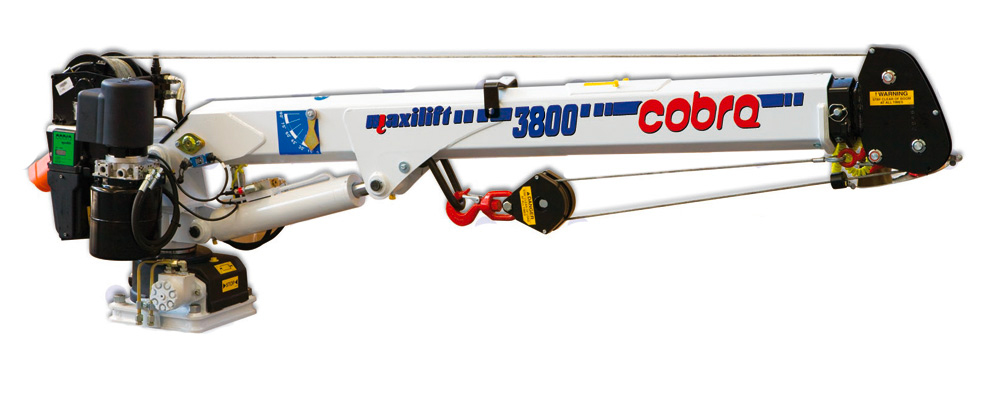

Cobra 3800 Series

3800
13,500 ft lb (18,3 kNm)

Main features

  • Amazing crane rating / weight ratio
  • Swedish high tensile steel
  • Hexagonal boom design single weld
  • 400° slewing rotation
  • Big size pins nitrated
  • Planetary gear winch with high resistance non twisting cable
  • Excellent winch single line break strength to better absorb shock load
  • Programmable load limiting device
  • Digital processor LED display on IP67 water proof casing, providing self-diagnostic and quick settings
  • Electrical A2B system
  • Installation kit included

Power

  • E 12/24 V: Electro-hydraulic, including heavy duty DC power-pack
  • H: P.T.O. driven

Telescopic boom system
One stage hydraulic and one manual

HYDRAULIC CRANES

3800.1 H

Crane rating: ft lb 13,500
One hydraulic extension and one manual extension
Hydraulic extension: ft 11’3
Horizontal extension (from center of rotation): ft 15’6
Slewing rotation: 400°
Rope diameter (non twisting type): in 1/4″
Rope lenght: ft 82′
Crane weight: lb 605

3800.2 H

Crane rating: ft lb 13,500
Two telescopic extensions with fully hydraulic stages
Hydraulic extension: ft 11’3
Horizontal extension (from center of rotation): ft 15’6
Slewing rotation: 400°
Rope diameter (non twisting type): in 1/4″
Rope lenght: ft 82′
Crane weight: lb 640

ELECTRO-HYDRAULIC CRANES

3800.1 E

Crane rating: ft lb 13,500
One hydraulic extension and one manual extension
Hydraulic extension: ft 11’3
Horizontal extension (from center of rotation): ft 15’6
Slewing rotation: 400°
Rope diameter (non twisting type): in 1/4″
Rope lenght: ft 82′
Crane weight: lb 650

3800.2 E

Crane rating: ft lb 13,500
Two telescopic extensions with fully hydraulic stages
Hydraulic extension: ft 11’3
Horizontal extension (from center of rotation): ft 15’6
Slewing rotation: 400°
Rope diameter (non twisting type): in 1/4″
Rope lenght: ft 82′
Crane weight: lb 680

OPTIONALS

Oil tank
4 gallons reservoir oil, with filter on return line (only for PTO driven versions)

Receiver for auxiliary functions
Receiver for auxiliary functions (engine, compressor star/stop, truck engine accelerator)

Remote control wire
33 ft. remote control serial cable, where or when radio operation is not permitted (RS version only)

SCU
SCU – stability control kit for 1 extendable outriggers set (4 sensors) including aux receiver

Workshop cable
Workshop cable for auxiliary receiver matching (to be always purchased along with 1st SCU)

ON/OFF
Radio ON/OFF remote control, 4 functions (3300 W only)

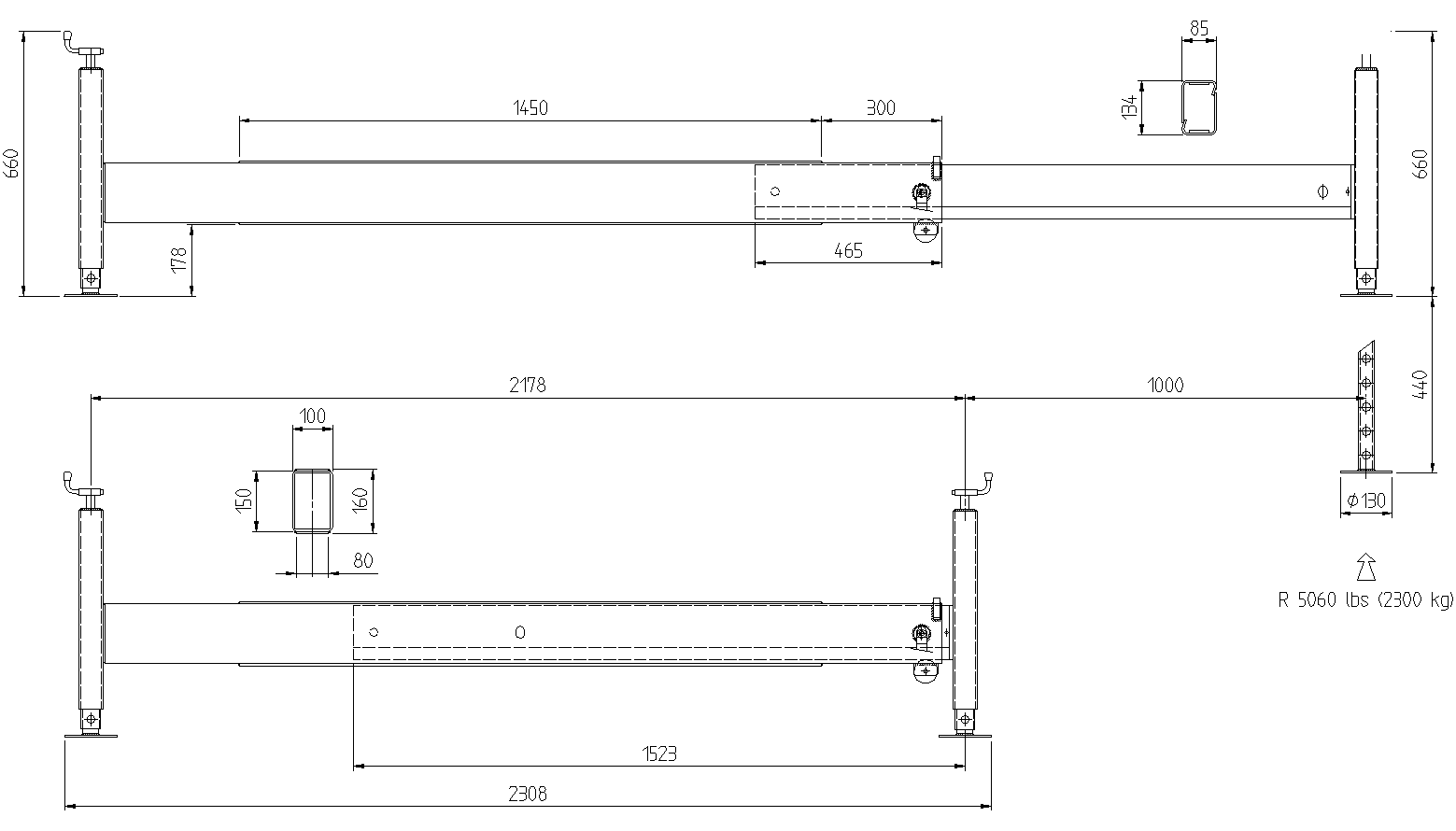

OUTRIGGERS

2.3 F-EMO M – One side manual out, both legs manual up/down

2.3 F-EMO K – One side manual out, both legs manual up/down

2.3 F-EMO M – One side manual out, both legs manual up/down

2.3 F-EMO K – One side manual out, both legs manual up/down
