510 Series

Maxilift 510 Series

510 - 510 L SERIES

Standard outreach: from 11’11” to 22’4″ m
330° ball bearing slewing rotation
4 functions valve bank (one free)



Including

  • 30 lt. oil tank
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options

  • Supplementary stabilizer with hydraulic cylinders
  • 3 – 4 functions proportional remote control (by cable or radio)
  • 990 kg hydraulic winch New system with less cumbersome snatch block and quick disconnecting stop end system

FULL CAPACITY

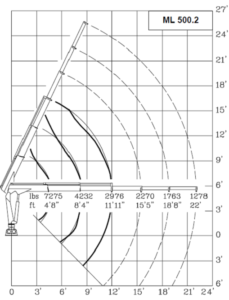

510.2

Crane rating: ft lb 35.400
Standard outreach: ft 11′ 11″
Standard hydraulic extensions: n° 2

Maximum angle slope: °5

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3335
Basic crane weight: lb 1025

510.3

Crane rating: ft lb 35.400
Standard outreach: ft 15′ 5″
Standard hydraulic extensions: n° 3

Maximum angle slope: °5

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3335
Basic crane weight: lb 1100

510L.2

Crane rating: ft lb 35.400
Standard outreach: ft 14′ 5″
Standard hydraulic extensions: n° 2

Maximum angle slope: °5

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3335
Basic crane weight: lb 1070

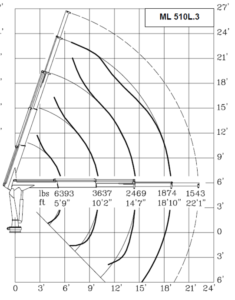

510L.3

Crane rating: ft lb 35.400
Standard outreach: ft 18′ 10″
Standard hydraulic extensions: n° 3

Maximum angle slope: °5

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3335
Basic crane weight: lb 1170

510L.4

Crane rating: ft lb 35.400
Standard outreach: ft 22′ 4″
Standard hydraulic extensions: n° 4

Maximum angle slope: °5

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3335
Basic crane weight: lb 1245

OPTIONALS

Slewing angle limitation

Winch

Cable remote control

Radio remote control

Additional function

Colour

Manual extensions

Activations

APPLICATIONS
