Cobra 6600 Series

6600
38,600 ft lb (5,2 tm)

Main Features

  • Amazing crane rating / weight ratio
  • Swedish high tensile steel
  • Hexagonal boom design single weld
  • Continuous (non stop) slewing
  • Big size pins nitrated
  • Planetary gear winch with non twisting cable
  • Patented pull line limiter system
  • Excellent winch single line break strength to better absorb shock load
  • Programmable load limiting device
  • Digital proportionl remote control unit (2,4 GHz) with single hand or with belly-box paddle type transmitter
  • Mechanical A2B system
  • A2B counterweight storage new design unit with standard auto-release feature
  • Installation kit included

Power

  • E 24V: Electro-hydraulic, including heavy duty DC power-pack
  • H: P.T.O. driven

Telescopic boom system
Two fully hydraulic stages

HYDRAULIC CRANES

6600.H

Crane rating: ft lb 38,600
Two telescopic extensions with fully hydraulic stages
Hydraulic extension: ft 21′
Horizontal extension (from center of rotation): ft 21′
Slewing rotation: Continuous (non stop)
Rope diameter (non twisting type): in 25/64″
Rope lenght: ft 98′
Crane weight: lb 1,300

ELECTRO-HYDRAULIC CRANES

6600.E

Crane rating: ft lb 25,000
Two telescopic extensions with fully hydraulic stages
Hydraulic extension: ft 21′
Horizontal extension (from center of rotation): ft 21′
Slewing rotation: Continuous (non stop)
Rope diameter (non twisting type): in 25/64″
Rope lenght: ft 98′
Crane weight: lb 1,060

OPTIONALS

Oil tank

8 gallons reservoir oil, with filter on return line (only PTO driiven)

Safety latch

Safety latch with spring for swivel hook



Cable pressure rollers

Cable pressure rollers, spring loaded on winch drum

Receiver

Receiver for auxiliary functions (engine, compressor star/stop, truck engine accelerator)

Remote control wire

33 ft remote control wire where or whne radio operaton is not permitted

Counterweight

Counterweight for single line lifting



SCU

SCU – stability control kit for 1 extendable outriggers set (4 sensors) including aux. receiver

Workshop cable

Workshop cable for auxiliary receiver matching (to be always purchased along with 1st SCU)

OUTRIGGERS

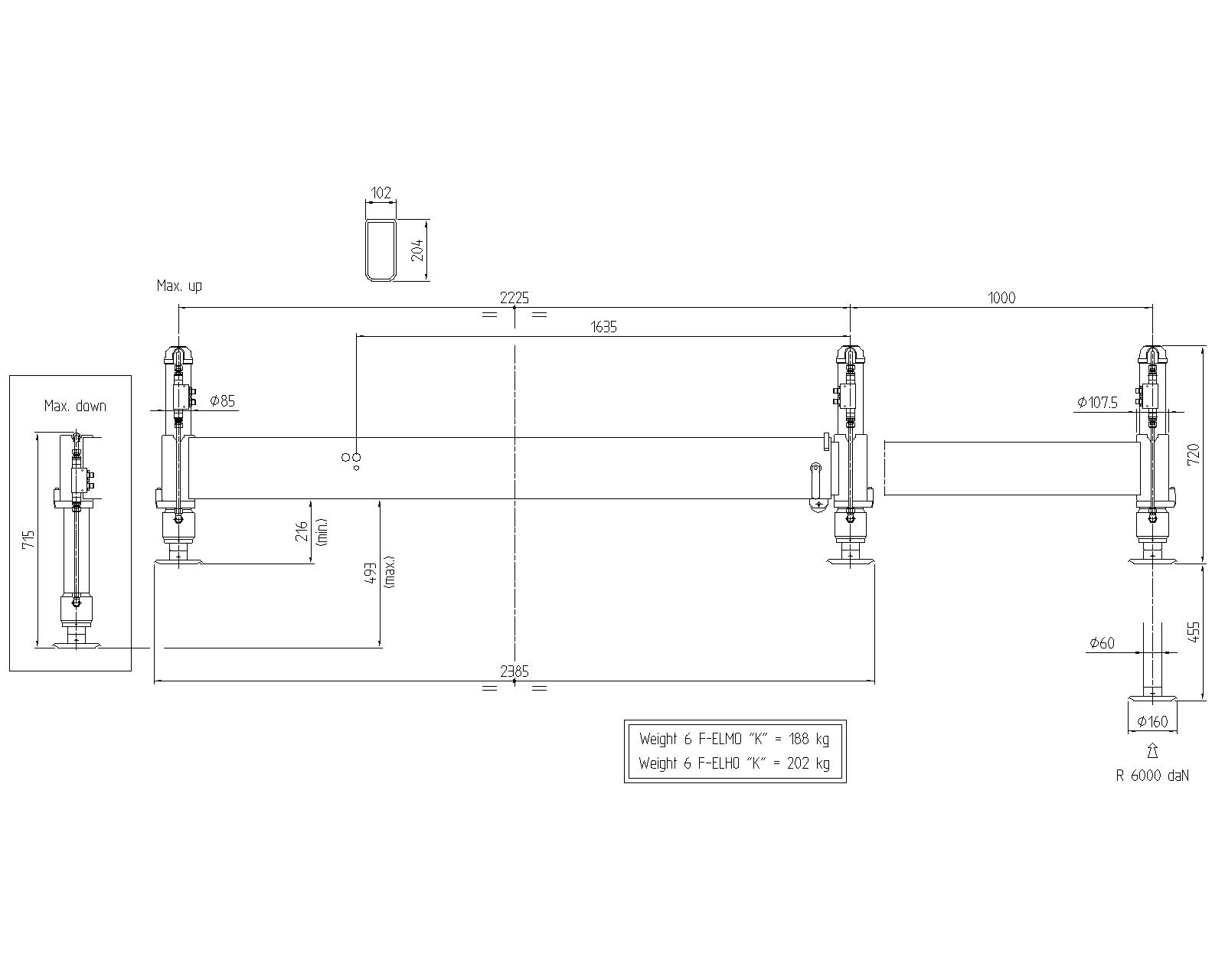

6 F-ELHO K – One side hydraulic out, both legs hydraulic up/down

6 F-ELMO K – One side manual out, both legs hydraulic up/down

6 F-ELHO K – One side hydraulic out, both legs hydraulic up/down

6 F-ELMO K – One side manual out, both legs hydraulic up/down
