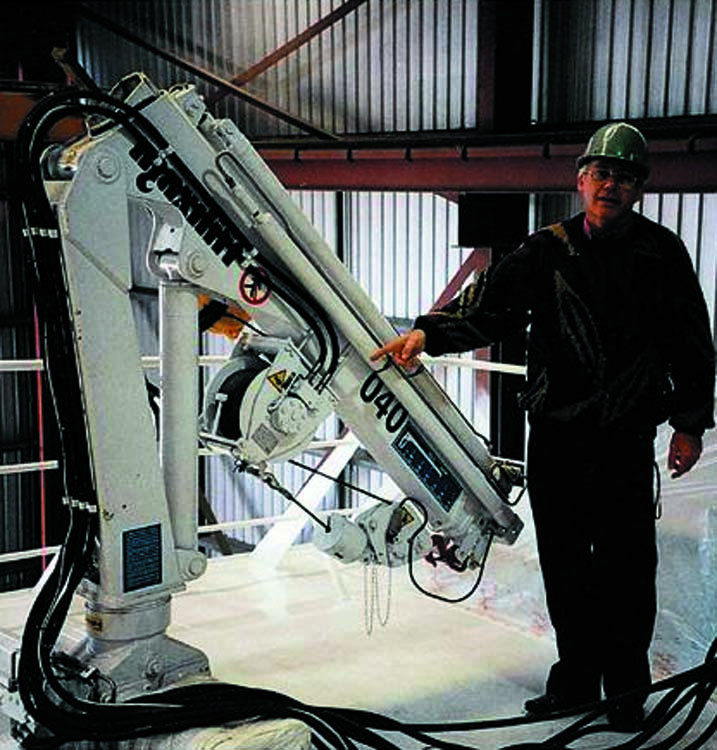

Maxilift 400-500 Marine Series

400 - 400 L Marine
500 - 500 L Marine

Standard outreach: from 11’11” to 18’10”
360° double rack and pinion slewing rotation
4 functions valve (one free)
Slewing torque ft lb 11,800

Including

  • Counterflange

Options:

  • 990 kg high speed winch
  • 30 lt oil tank kit

Standard marine treatment specification

  • Sand-blasting of structural elements
  • Painting:
  • – Organic epoxy galvanizing primer 20-30μ
  • – Bi-component epoxy priming coat 50-60μ
  • – Bicomponent polyuretan final painting 50-60μ
  • NITREG treatment oil link pins
  • Rods treatment with guarantee of 250 hours in saline fog
  • Valves protection by corrosion proofing treatment of painting
  • Stainless pipes
  • Stainless JIC fittings
  • Offshore JIC flexible hoses and stainless hoses terminals
  • Crews and accessories protected by corrosion proofing treatment

FULL CAPACITY

400.2 Marina

Crane rating: ft lb 30,980
Standard outreach: ft 11′ 11″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,015

400.3 Marina

Crane rating: ft lb 30,980
Standard outreach: ft 15′ 5″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,100

400L.2 Marina

Crane rating: ft lb 30,980
Standard outreach: ft 14′ 5″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,080

400L.3 Marina

Crane rating: ft lb 30,980
Standard outreach: ft 18′ 10″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,190

500.2 Marina

Crane rating: ft lb 35,400
Standard outreach: ft 11′ 11″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,350

500.3 Marina

Crane rating: ft lb 35,400
Standard outreach: ft 15′ 5″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,125

500L.2 Marina

Crane rating: ft lb 35,400
Standard outreach: ft 14′ 5″

Standard hydraulic extensions: N° 2

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,100

500L.3 Marina

Crane rating: ft lb 35,400
Standard outreach: ft 18′ 10″

Standard hydraulic extensions: N° 3

Maximum angle slope: °15

Suggested oil flow: gpm 4÷4.8

Max. working pressure: p.s.i. 3,335
Basic crane weight: lb 1,210

OPTIONALS

Winch

Colour

Personalized colour on request (standard colour white RAL 9003)

Oil tank

Manual extensions
