Maxilift 150 Series

150 SERIES

Standard outreach: from 9’10” to 13’2″ m
330° slewing rotation with worm screw
4 functions valve bank



Including

  • 15 lt. oil tank for H version(P.T.O. – Power Take Off)
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options

  • Crane base with 1 hydraulic and 1 mechanical stabilizers (fix or tilting)
  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • 3 – 4 functions proportional remote control (by cable or radio)
  • 500 kg hydraulic winch – New system with less cumbersome snatch block and quick disconnecting stop end system

FULL CAPACITY

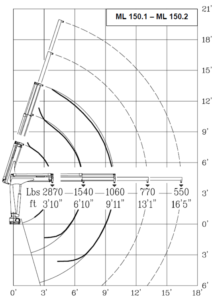

150.1

Crane rating: ft lb 10.350
Standard outreach: ft 9′ 11″
Nr. of extensions (h=hydraulic – m=manual): 1 H + 1 M

Maximum angle slope: °5

Suggested oil flow: gpm 1.6÷2.1

Max. working pressure: p.s.i. 3045
Basic crane weight “ers” 12v/24v: lb 410
Basic crane weight “h”: lb 365

Base weight with extendable stabilizers: lb 140÷195
Beam weight with 2 extendable stabilizers: lb 130÷135

150.2

Crane rating: ft lb 10.350
Standard outreach: ft 9′ 11″
Nr. of extensions (h=hydraulic – m=manual): 2 H

Maximum angle slope: °5

Suggested oil flow: gpm 1.6÷2.1

Max. working pressure: p.s.i. 3045
Basic crane weight “ers” 12v/24v: lb 430
Basic crane weight “h”: lb 385

Base weight with extendable stabilizers: lb 140÷195
Beam weight with 2 extendable stabilizers: lb 130÷135

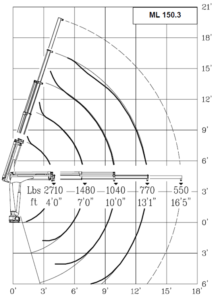

150.3

Crane rating: ft lb 10.350
Standard outreach: ft 9′ 11″
Nr. of extensions (h=hydraulic – m=manual): 3 H

Maximum angle slope: °5

Suggested oil flow: gpm 1.6÷2.1

Max. working pressure: p.s.i. 3045
Basic crane weight “ers” 12v/24v: lb 450
Basic crane weight “h”: lb 410

Base weight with extendable stabilizers: lb 140÷195
Beam weight with 2 extendable stabilizers: lb 130÷135

OPTIONALS

Slewing angle limitation

Winch

Cable remote control

Radio remote control

Additional function

Colour

Personalized colour on request (standard colour red RAL 3020)

Micro-switch for extension

Micro-switch kit signalling not locked side extension.

Counter flange

Crane base H

Crane base M

Main beam H

Main beam M

Titling stabilisers

Mechanical stabiliser

Tilting kit

Side handle leg

Manual extensions

Fixed installation

Conversion and upgrade

APPLICATIONS
