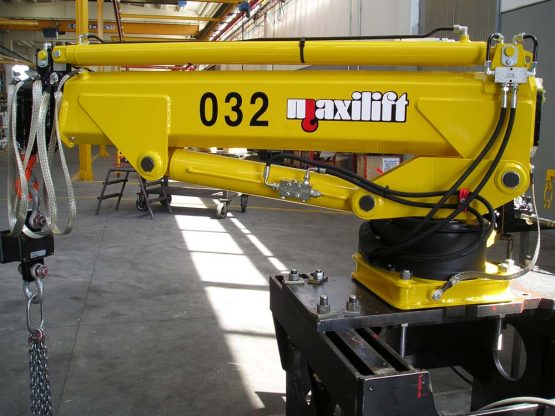

Maxilift 330 Series

330 SERIES

Standard outreach: from 10’10” to 17’7″
360° slewing rotation with worm screw
4 functions valve bank



Including

  • 15 lt. oil tank for H (P.T.O. – Power Take Off) version
  • Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
  • Tie bolts set, nuts and lock nuts
  • Spare grease cartridge for slewing worm gear

Options

  • Crane base with 2 hydraulic stabilizers (fix or tilting)
  • Additional beam with hydraulic stabilizers
  • 3 – 4 functions proportional remote control (by cable or radio)
  • 700 kg hydraulic winch (for H versions only) New system with less cumbersome snatch block and quick disconnecting stop end system

FULL CAPACITY

330.2

Crane rating: ft lb 23.600
Standard outreach: ft 10′ 10″
Standard hydraulic extensions: n° 2

Maximum angle slope: °5

Suggested oil flow: gpm 2.6÷3.2

Max. working pressure: p.s.i. 3190
Basic crane weight “e” 12v/24v: lb 640
Basic crane weight “h”: lb 595

Base weight with extendable stabilizers: lb 285÷305

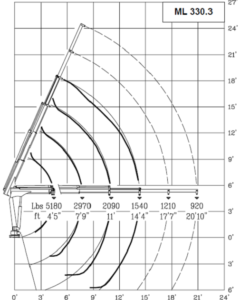

330.3

Crane rating: ft lb 23.600
Standard outreach: ft 14′ 14″
Standard hydraulic extensions: n° 3

Maximum angle slope: °5

Suggested oil flow: gpm 2.6÷3.2

Max. working pressure: p.s.i. 3190
Basic crane weight “e” 12v/24v: lb 695
Basic crane weight “h”: lb 650

Base weight with extendable stabilizers: lb 285÷305

330.4

Crane rating: ft lb 23.600
Standard outreach: ft 17′ 7″
Standard hydraulic extensions: n° 4

Maximum angle slope: °5

Suggested oil flow: gpm 2.6÷3.2

Max. working pressure: p.s.i. 3190
Basic crane weight “e” 12v/24v: lb 760
Basic crane weight “h”: lb 715

Base weight with extendable stabilizers: lb 285÷305

OPTIONALS

Slewing angle limitation

Winch

Cable remote control

Radio remote control

Additional function

Marinization

Colour

Personalized colour on request (standard colour red RAL 3020)

Micro-switch for extension

Micro-switch kit signalling not locked side extension.

Titling stabilisers

Manual extensions

Fixed installation

Conversion and upgrade

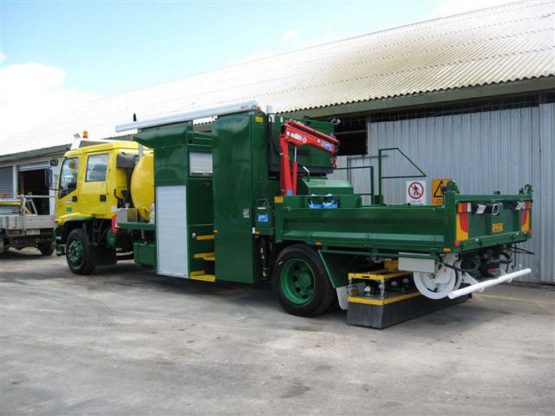

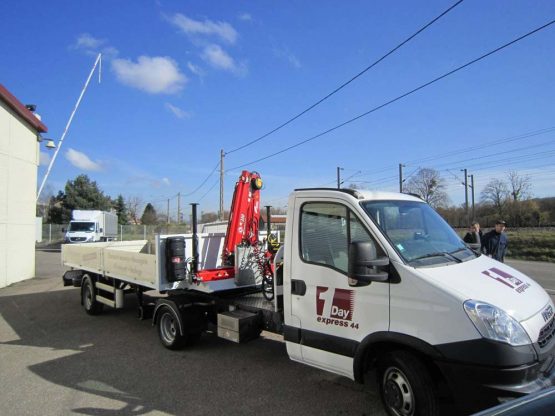

APPLICATIONS
